TVLogic LVM-173W-3G 17" Monitor

TVLogic LVM-173W-3G 17" Monitor

  • LowBoy Stand
  • 2x 5M BNC SDI Cables
  • 1x 5M HDMI to HDMI Cable
  • Power Cable
  • Flight Case
  • Acrylic Screen Protector

3G-SDI Level A/B

Supports 3G-SDI Level A/B input.



Audio Level Meter Display

Displays the level of the embedded sound signal together with the video signal input through the terminal such as SDI or HDMI.
Audio Level Meter Display



Blue Only / Mono

Red and Green channels are not used and only Blue or Monochrome channel is used to display the screen. This function is used to adjust the color tones (tones and saturation) of the screen using the SMPTE Color Bar. For example, after displaying the Blue channel, adjust the Color (or Saturation) and Tint (or Hue) so that the original Magenta and Cyan are of the same brightness, and the original Gray and Blue are of the same brightness.
blue only



Closed caption

Closed caption.
Closed caption



Focus Assist

Assigns a color to the pixels on the boundaries of the image to inform the user to achieve the best focus. With this function, user can easily differentiate the focused area from out-focused area especially when shooting with a shallow depth of field.
Focus AssistFocus Assist



H/V Delay

Allows you to check the Blanking area and synchronize signals by displaying the horizontal and vertical intervals in the center of the screen.
H/V Delay



Key Lock

Key Lock is a password-protection function of the OSD menu so that non-authorized users cannot change the setting of the monitor.
Key Lock



Marker

Displays various kinds of aspect ratios on the screen. Wide range of markers and security areas are available with line color and curtain transparency selection. A User Marker is available if any of standard markers fits your requirements.
Marker



PBP(Picture by Picture)

Support displaying multiple inputs on the screen at the same time.
PBP(Picture by Picture)PBP(Picture by Picture)PBP(Picture by Picture)



Range Error

Analyzes the input signal’s Luma (Y’) and chroma (C’) information. If the input signal exceeds the designated minimum and maximum values, the pixel will blink. This function allows for the user to easily identify any issues with exposure.
Range ErrorRange Error



Time Code Display

Displays the Timecode information on the screen.
Time Code Display



UMD

Displays user customized 8 characters or source ID or Tally signal of Ancillary (ANC) data on the screen.
UMD



User Aspect

Adjusts the Width /Height display ratio.
User AspectUser AspectUser Aspect



Various Scan Modes

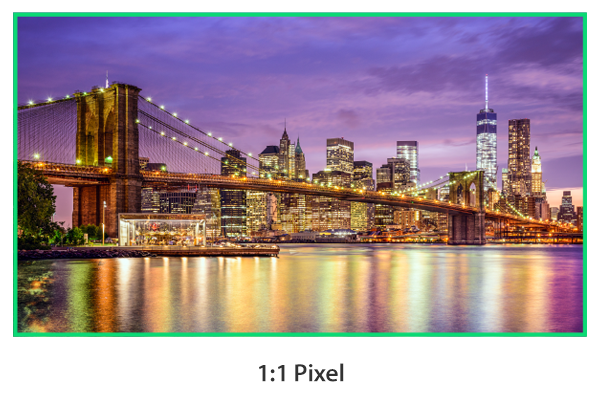

Controls the size of the image. Overscan: Extra area around the four edges of the image that may not be seen reliably by the viewer. Underscan: Constrains the size of the image so the monitor shows everything the camera is seeing. 1:1 pixel: Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.
Various Scan ModesVarious Scan ModesVarious Scan Modes



Waveform/Vector Scope

Waveform Y: Displays the Luma(Y’), Cb, Cr component of the input signal into waveform.
Vector Scope: Displays the color components ‘B-Y’ and ‘R-Y’of the input signals onto the X-Y axis.
Waveform/VectorWaveform/Vector



Zoom

Magnifies the input signal from 0% to 90%.
ZoomZoom

Display Spec



 Size  17"
 Resolution  1366 X 768 (16 : 9)
 Pixel Pitch  0.273mm
 Color Depth  16.7M
 Viewing Angle  178°(H) / 178°(V)
 Luminance  350cd/m2
 Contrast Ratio  900:1
 Display Area  373(H) x 210(V) mm

Input
 1 X BNC  Analog Input (Composite)
 3 X BNC  Analog Input (Component)
 2 X BNC  3G-SDI A/B Channel Input
 1 X HDMI  HDMI Input
 1 X DVI  DVI Input

Output
 1 X BNC  Analog Output (Composite)
 3 X BNC  Analog Output (Component)
 2 X BNC  3G-SDI A/B Channel Output

Input Signal
 Analog  CVBS / S-Video / Component / RGB(D-TV)
 3G SDI  2.970Gbps
 HD SDI  1.485Gbps
 SD SDI  270Mbps
 HDMI  480i/480p/576i/576p/720p/1080i/1080p/640x480/ 720x400/800x600/1024x768/1280x1024/1366x768
 DVI Analog  640x480/720x400/800x600/1024x768/1366x768
 DVI DP  640x480/720x400/800x600/1024x768/1366x768

SDI Input Signal Formats
 SMPTE 425M-A/B  1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/ 29.97sF/25sF/24sF/23.98sF)
 SMPTE 372  Dual HD-SDI YCbCr(4:2:2) 1080p (60/59.94/50)Dual HD-SDI YCbCr/RGB(4:4:4) 1080i (60/59.94/50) 1080p (30/29.97/25/24/ 24sF/23.98/23.98sF)
 SMPTE 296  720p (60/59.94/50)
 SMPTE 274  1080i (60 / 59.94 / 50) 1080p (30/29.97/25/24/24sF/23.98/23.98sF)
 SMPTE 260  1035i (60/59.94)
 SMPTE 125  480i (59.94)
 ITU-R BT.656  576i (50)
 2K Format  2048 x 1080p (24/24sF/23.98/23.98sF)

Audio
 Audio In  Embedded Audio/Analog Stereo (Phone Jack)
 Audio Out  Analog Stereo (Phone Jack), Internal Speaker(Stereo)

FPGA Functions
 1:1 Pixel Mapping Modes for SD/HD,  3G-SDI Level A/B,  Audio Level Meter Display,  Blue Only,  Focus Assist,  H/V Delay,  Key Lock,  Marker,  Mono,  Range Error,  Time Code Display,  UMD,  User Aspect,  Various Scan Modes,  Waveform/Vector,  X3 Zoom(PBP)

Closed Caption
 CC-608 ANC,  CC-608 LINE 21,  CC-708,  CC-KOR,  OP42,  OP47

Calibration
 TVLogic Color Calibration Utility

Other Functions
 REMOTE   TVLogic’s specification
 USB   Firmware update by USB cable
 Ethernet   Ethernet Control support

Options
  Carrying Case,  ND Acrylic Filter,  Rack Mount Kit(Single),  Sun Hood,  V-Mount

Dimensions







- Main Body :
 427 x 310 x 90.5 (mm) / 16.81 x 12.2 x 3.56 (inch)
- With stand : 474.2 x 327.8 x 150 (mm) / 18.66 x 12.9 x 5.9 (inch)
- Weight : 7.25kg / 15.98lbs
